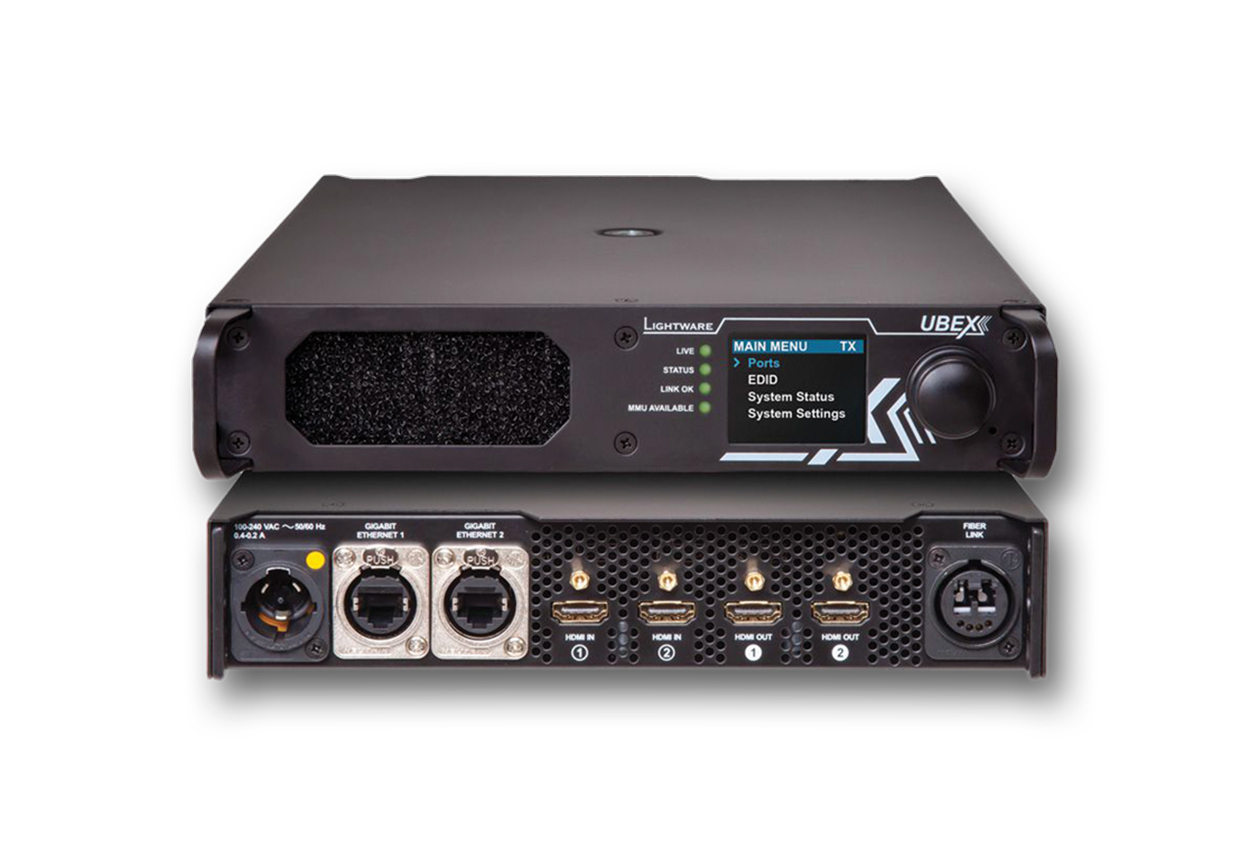

UBEX Pro20 HDMI R100

UBEX Pro20 HDMI R100

R-type Uncompressed AV-Over-IP Multimedia System for 10G Ethernet Networks

Highlighted features

  • Scaling of video signals to match the properties of the target display/sink
  • Balanced analog audio input and output ports for audio embedding and de-embedding
  • HDR support
  • Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
  • HDCP 2.2 and HDCP 1.4 compliant with cross conversion capabilities
  • 4096×2160@60Hz/4:4:4 maximum resolution (600MHz)
  • Uncompressed video up to 18 Gbps data rate (600 MHz pixel clock)


Additional information

Weight 6 kg
Dimensions 440 × 260 × 180 mm
