Pixelhue P80 4K Presentation Switcher

Up to 12 × 4K Inputs + Expandable Links
8 × 4K Main Outputs (Copy/Split)
Flex Outputs, SDI Matrix & Multiviewer

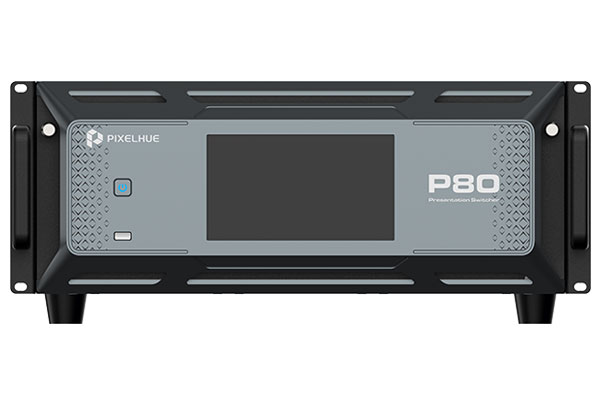

The Pixelhue P80 is a flagship 4K presentation switcher and video processor expertly engineered for large-scale events, broadcast environments, and multi-screen LED installations. Built on an FPGA-based high-performance architecture, the P80 delivers true 4K60p 4:4:4 10-bit internal video processing with ultra-low latency, ensuring seamless transitions and vivid, high-quality visuals for demanding productions.

Featuring up to 12 fixed concurrent 4K inputs — including HDMI 2.0, DP 1.2, and 12G-SDI — with a swappable input card option for further signal flexibility, the P80 handles complex multi-source environments with ease. Its 8 HDMI 2.0 main outputs support up to 4-screen 4K copy mode or 8-screen DL split mode, while flex outputs allow independent or edge-blended configurations. Also included are SDI matrix outputs and dedicated multiviewer outputs for complete signal monitoring.

Control the P80 through its intuitive 7″ graphical touchscreen, PixelFlow management software, event controllers such as the U5/U5 Pro, or third-party systems like Stream Deck — perfect for live events, conferences, concerts, exhibitions, broadcast control rooms, and permanent AV installations.
